Échelle en aluminium d'échafaudage EN131 GV CE

Description du produit

Contact Person:

Ray Yu

Skype:

zhadanlive

Mobile:

0086-18157940660  (WhatsApp/WeChat)

QQ:

2853262592

E-mail:

sales4

@deliladder.com

\ n Échelle d'échafaudage en aluminium avec EN131 SGS CE \ n \ n

1. Item NO

DLSL101

2. No. of step

2×6

3. Material

Aluminium alloy(6063A) and plywood

4. Thickness

1.2mm

5. Max load

150kg

6. Spacing between rungs

28cm

7. Scaffold position open size

160*168*60cm (W*H*D)

8. ,Max extended height in straight position

2.76m

9. Packing size

168×16×42(1pc/ctn)

10. N.W

18kg

11. G.W

17.2kg

12. Load quantity(20GP/40HQ)

270pcs/650pcs

13. Can be used as

Step Ladder, Extension Ladder, Work Platform Ladder, Stair Scaffolding ladder.

\ n \ n \ n \ n \ n

Safety First! Before use the ladders, please read the marking carefully!

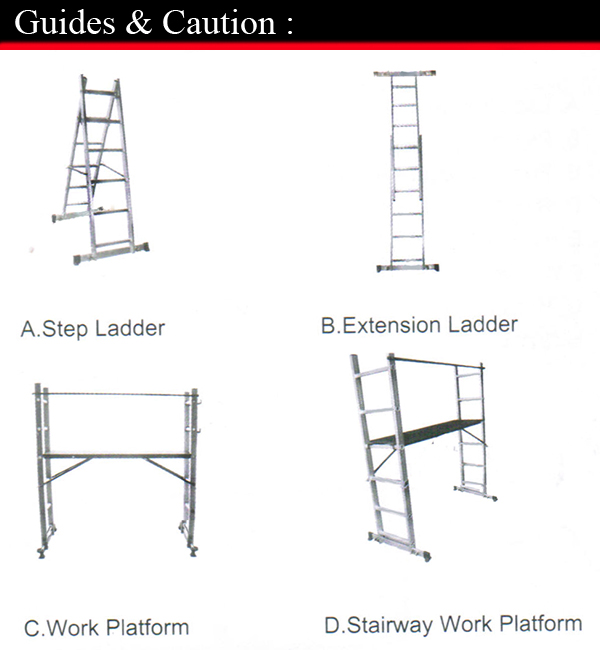

GUIDES

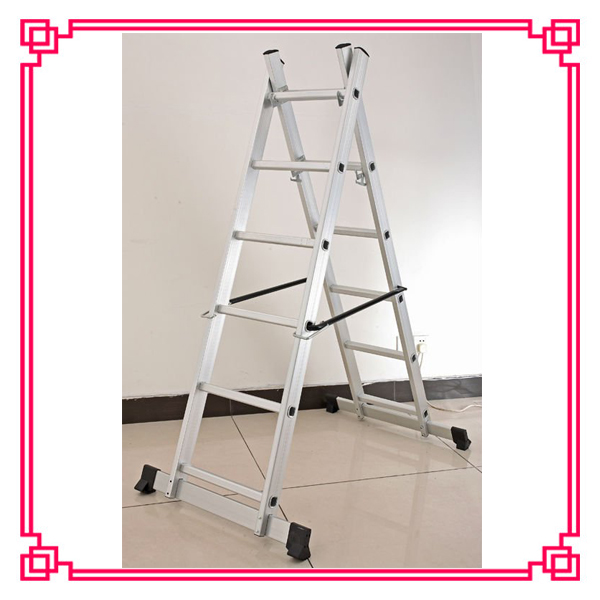

1.

Step

Ladder

Assembly

One person can assemble this safely. Take the two straight ladder sections and connect together securely with the fixed hooks (in one section) and attach support arms to each side.

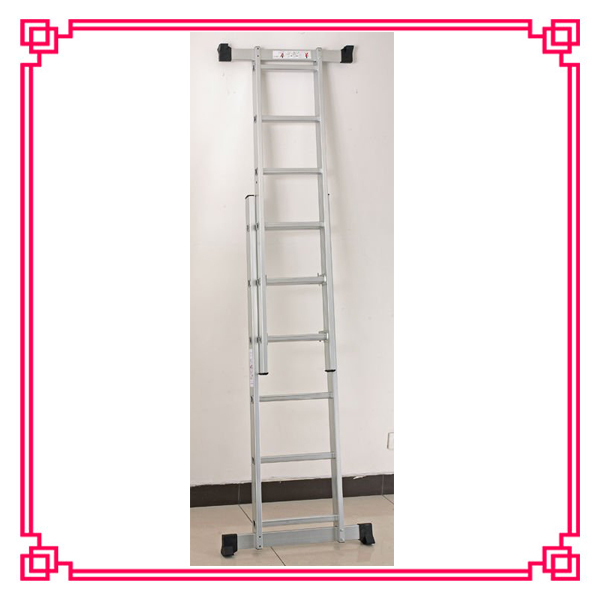

2.

Extension

Ladder

Assembly

One person can assemble this safely. Use both hands to hold up the ladder frame and insert this into the second ladder frame section with the fix hooks.

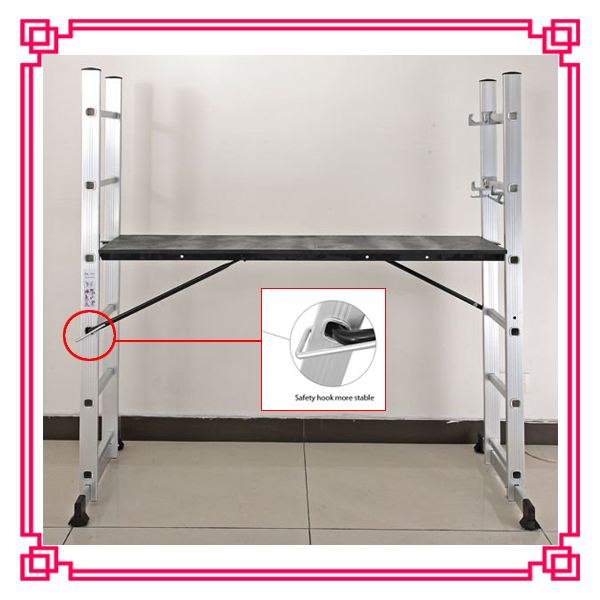

3.

Work

Platform

Assembly

Three people are required to assemble this safely. Two people should hold the ladder frames in the correct position, while one person places the platform in place(must be horizontal), and then fix support arms to each side, and finally fix handrail.

4.

Stairway

Work

Platform

Three people are required to assemble this safely. Two people should hold the ladder frames in the correct position, while one person places the platform in place(must be horizontal), and then fix support arms to each side.

Note: Choose a different rung on each ladder to place the platform in accordance with the level of stair and height that you are working at. Platform must always be horizontal, and finally fix handrail.

5. Use only in the above applications.

6. Always take care when using.

7. Always stabilise and test the ladder before use.

8. Only use the platform in a horizontal direction.

9. For the single extension ladder always set at 75.5 degree angle.

CAUTION

1. DANGER, METAL LADDERS CONDUCT ELECTRICITY.

Do not let ladders of any material come in contact with live electrical wires.

2. Never use ladder with missing, worn or damaged parts. Inspect before each use.

3. Don’t over reach forwards or sideways.

4. Don’t leave loose tools lying around on the platform-they could fall and injure somebody.

5. Clean scaffold ladder after using on ground or in dirty area. If washed with water, lubricate after drying.
